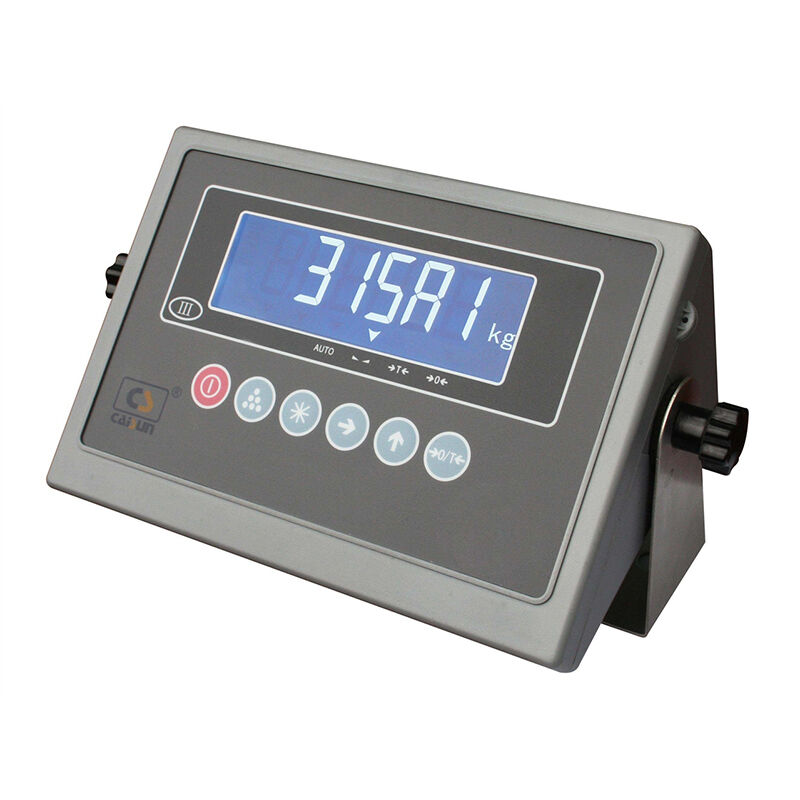

BXK315A1-10 Weighing Indicator – Reliable Precision & Advanced Features

Features

• 1. 0 V/m immunity to radiated electromagnetic fields in this weighing indicator

  2. 6-digit 25.4mm LCD on the indicator weighing display

  3. Drive up to 4 x 350Ω or 8 x 700Ω load cell with the weighing indicator

  4. 5V load cell excitation voltage from the indicator

  5. Connection to 4-wire or 6-wire load cell via the weighing indicator

  6. 1,000,000 internal ADC counts in the indicator weighing system

  7. Quick recalibration due to change of environment with the weighing indicator

  8. Manual and automatic weight accumulation on the indicator

  9. Automatic zero tracking in the weighing indicator

  10. RS-232C/RS-485 interface with continuous data output or command protocol on the indicator

  11. RS-232C serial printer interface for the weighing indicator

  12. High resolution (×10) display on the weighing indicator

  13. HI/OK/LO set point using the indicator weighing controls

  14. Low battery warning on the weighing indicator

Dimensions(mm)
