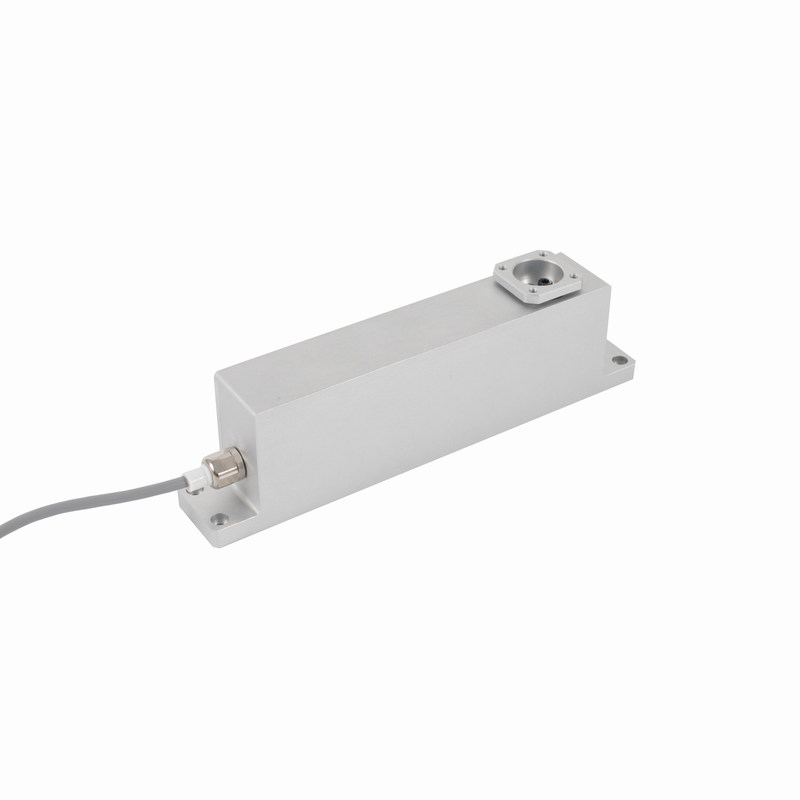

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Name: WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: WLSM-132
Price: 25.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: Brans

Número do modelo: WLSM-132

Documento: WLSM-132 High Accuracy Load...NS.pdf

Termos do pagamento & do transporte

Quantidade de ordem mínima: 1 unidade

Tempo de entrega: uma semana

Termos de pagamento: T/T

Habilidade da fonte: 800 pcs/mês

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                compact single point load cell, single point load cell with overload protection, easy installation single point load cell


Capacidade:	30 g/50 g/100 g/300 g /500 g/1 kg/2 kg	Erro combinado:	≤0,005%FS
Não linearidade:	≤0,005%FS	Repetibilidade:	≤0,005%FS
Saída nominal:	1.0 mV/V	Balanço zero:	± 0,05 mV/V
Resistência de Isolamento:	¥5000MΩ/100VDC	Material:	Liga de alumínio
Sobrecarga segura:	150%F.S.	Classe de Proteção:	IP66 (customizável)
Operação Temp.:	-30 a 80°C	Tamanho do cabo:	Ф3,2x4000mm (personalizável)

Capacidade:	30 g/50 g/100 g/300 g /500 g/1 kg/2 kg
Erro combinado:	≤0,005%FS
Não linearidade:	≤0,005%FS
Repetibilidade:	≤0,005%FS
Saída nominal:	1.0 mV/V
Balanço zero:	± 0,05 mV/V
Resistência de Isolamento:	¥5000MΩ/100VDC
Material:	Liga de alumínio
Sobrecarga segura:	150%F.S.
Classe de Proteção:	IP66 (customizável)
Operação Temp.:	-30 a 80°C
Tamanho do cabo:	Ф3,2x4000mm (personalizável)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection

Features & Applications

1. The WLSM-132 features a compact, easy-to-install Single Point Load Cell with integrated overload protection for reliable operation.
2. Engineered for exceptional accuracy, this single point load cell delivers high precision with mg-level resolution.
3. Offering strong stability, it is the best choice for micro-volume, high-precision weighing, making it an ideal single-point load cell for critical applications.
4. This high-stability load cell is mainly used for batching, filling, and production quality control in micro-dispensing, medicine, cosmetics, food packaging, and other small packages.

Specifications

Capacity	30g/50g/100g/300g /500g/1kg/2kg
Combined Error	≤0.005%F.S.
Non-linearity	≤0.005%F.S.
Repeatability	≤0.005%F.S.
Rated Output	1.0mV/V
Zero Balance	0.05mV/V
Insulation Resistance	≧5000MΩ/100VDC
Recommended Excitation	2~12VDC
Material	Aluminum Alloy
Safe Overload	150%F.S.
Protection Class	IP66(Customizable)
Operation Temp.	-30~80°C
Cable Size	Ф3.2x4000mm(Customizable)
Nominal Displacement	<0.05mm

Dimensions(mm)

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 0

Load direction

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 1

Wiring code

WLSM-132 Compact Single Point Load Cell | Easy Installation & Overload Protection 2

Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.

Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
